Change Variable¶
Description¶

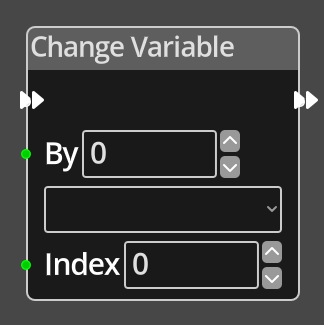

The Change Variable Node is a simple way to modify the value of a variable on the
current logic graph in one operation, avoiding the need for a
Get, Math and Set
sequence.
Ports¶
- Flow In
- In order for this node to perform its operation, it must be connected into an active flow using this input port. The flow will ultimately originate at a Trigger node but can come from the Flow Out port of any other flow node.
- Flow Out
- A node connected to the Flow Out port will be executed in sequence following the completion of this node's operation.
- By
- An integer input port used to provide the amount that the variable will be changed by, this can be positive or negative.
- Index
- An integer value for choosing which element in an Array variable to change. If the variable being accessed is not an Array variable, this parameter is ignored.
Parameters¶
- By
- A constant integer amount that the variable will be changed by, used when the By port is not connected.
- Variable
- A dropdown listing the defined variables associated with the current logic graph.
- Index
- A constant integer for the Array index if the Index port is not connected.
