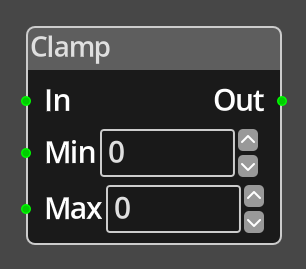

Clamp¶
Description¶
The Clamp Node takes an integer value on the In port, if the value is
less than or equal to the Min port/parameter the Min port/parameter
value is output, if it is greater than or equal to the Max port/parameter
the Max port/parameter value is output, otherwise the value is output
unmodified.
Ports¶
- In
- An integer input port used to provide the input value for testing. This must be connected for the node to operate correctly.
- Out
- An integer output port, the result of the comparison detailed in the description is output on this port.
- Min
- An integer input port, using this allows you to specify the minimum value from elsewhere in the logic graph, such as via an Number node.
- Max
- An integer input port, using this allows you to specify the maximum value from elsewhere in the logic graph, such as via an Number node.
Parameters¶
- Min
- A constant integer value for the minimum, used when the Min port is not connected.
- Max
- A constant integer value for the maximum, used when the Max port is not connected.
