Collided¶
Description¶
The Collided Node is a specific type of Node called a Trigger. A
trigger Node is an entrypoint into a flow in the Kwyll logic. The Collided
trigger will get triggered when the object it is on has collided with the
tilemap as a result of being moved with a Move Object
node.
Ports¶
- Flow Out
- As with all trigger nodes, a Collided Node has only a single flow port on the output side. There is no input flow to a trigger node as it is the origin of a flow.
- Sides
- An integer output port that provides the sides that the collision occurred. Typically this will be a single side, but to accommodate the potential of simultaneously colliding with two sides, the value is encoded as a bit field. That is, the first 4 bits of the binary representation encode the up, down, left and right sides. Bit 0 is up, bit 1, down, bit 2 left and bit 3 right.
An Example:

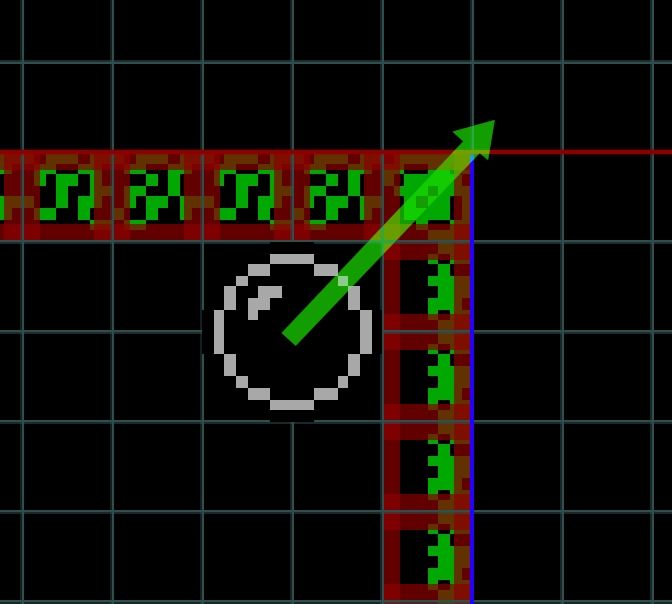

In this image, the object is moving in the direction of the green arrow, which
will result in it colliding in both right and up directions, as the tilemap has
collision information indicating that the tiles cannot be passed in all directions,
the resulting value will be bit 0 set and bit 3 set, bit 0 set results in a
value of 1, bit 3 set results in a value of 8, add them together and the output
of the Sides port would be 9.
Bits:
| 0 | 1 | 2 | 3 | |
|---|---|---|---|---|
| SIDE | UP | DOWN | LEFT | RIGHT |
| VALUE | 1 | 2 | 4 | 8 |
