Get Object Flags

Description

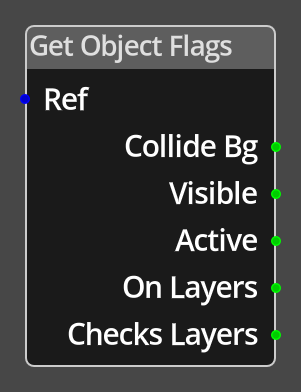

Get Object Flags Node The Get Object Flags Node allows the user to query the various flags on an object in the game. As the flags on an object are represented as bits in a larger value, the actual number returned is the value of that bit in the flags, as detailed below for each output port.


Ports

Ref
An object reference port that provides a reference to the object to query the flags on. If this is not connected, and the logic is on an object, the current object will be used.
Collide Bg
The value of the collides with background flag. This is bit 1, if the flag is set the result will be 2.
Visible
The value of the visible flag. This is bit 3, if the flag is set the result will be 8.
Active
The value of the active flag. This is bit 4, if the flag is set the result will be 16.
On Layers
A bit field representing the intersection layers this object belongs to, bits 0 to 7 represent layers 0 to 7.
Checks Layers
A bit field representing the intersection layers this object will check for intersections with, bits 0 to 7 represent layers 0 to 7.
