If¶
Description¶

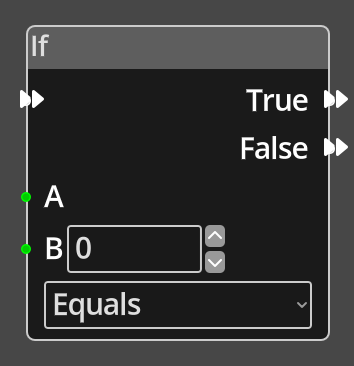

The If Node performs a comparison between two input values and
follows one of two flows depending on the result of the comparison.
Ports¶
- Flow In
- In order for this node to perform its operation, it must be connected into an active flow using this input port. The flow will ultimately originate at a Trigger node but can come from the Flow Out port of any other flow node.
- True
- A node connected to the True port will be executed in sequence if the result of the comparison succeeds.
- False
- A node connected to the False port will be executed in sequence if the result of the comparison fails.
- A
- An integer input port used to provide the first value for comparison. This must be connected for the node to operate correctly.
- B
- An integer input port used to provide the second value for comparison.
Parameters¶
- B
- A constant integer value for the B operand, used when the B port is not connected.
- Comparison
- The type of comparison to perform, this can be any one of "equals", "greater than", "less than", "greater or equal", "less or equal", or "not equal".
