Object Position

Description

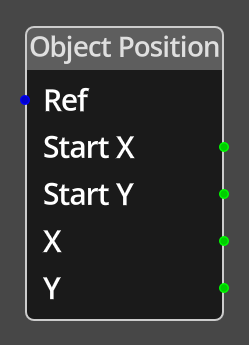

Object Position Node The Object Position Node provides position information about the current Object Instance that the logic graph is running on.

Note

The position data is returned in the appropriate coordinate system for the object being referenced. A global or dynamic object will return coordinates in "map" space, a room object will return coordinates in the local space of the room.


Ports

Ref
An Object Reference input port that can provide an object that will be used to lookup the instance data. If this is not connected and the logic is on an Object, the current object will be used instead. If the logic is not on an object, 0 will be returned on all output ports.
Start X
The initial X position of the object, this is constant, and used to reset the object's position at the start of the game.
Start Y
The initial Y position of the object, this is constant, and used to reset the object's position at the start of the game.
X
The current X position of the object, this is the live position of the object as set by any Move Object nodes, or other nodes that can modify an object's position.
Y
The current Y position of the object, this is the live position of the object as set by any Move Object nodes, or other nodes that can modify an object's position.
