On Message

Description

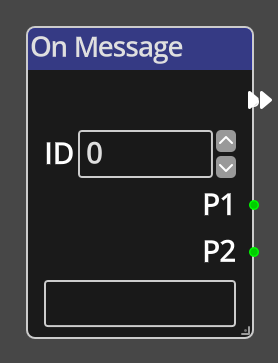

On Message Node The On Message Node is a specific type of Node called a Trigger. A trigger Node is an entrypoint into a flow in the Kwyll logic. The On Message trigger is triggered manually within another flow by using the Message Location, Message Object, Message Screen or Message Game Logic nodes.

A message consists of 3 parts, an ID and two optional parameters. The send message nodes have ports and parameters to set these values which control how this flow responds. The ID sent must match the ID defined in this flow for the flow to run. The parameters are typically used to control what the flow does. For example, a flow on a room that opens a door might take the side of the room that the door is on in P1 and the type of door in P2.

The text field at the bottom of this node can be used to give a name to this message flow, it is used for informational purposes only, as a reminder to the designer of what this flow is responsible for.


Ports

Flow Out
As with all trigger nodes, an On Message Node has only a single flow port on the output side. There is no input flow to a trigger node as it is the origin of a flow. This flow is only followed if the ID of the message sent matches the ID of this flow.
P1
The value of the first parameter sent with the message, the Message nodes have ports and parameters to define this, so each use of the message flow can have different results based on the information passed in.
P2
The value of the second parameter sent with the message, the Message nodes have ports and parameters to define this, so each use of the message flow can have different results based on the information passed in.

Parameters

ID
On Message Nodes have a single additional parameter, ID. This is the message ID that the flow will respond to. It is sent as part of the Message send nodes. Using this ID it is possible to have multiple flows on an object, room, screen or in the global logic that respond to different messages, multiple "functions" if you will.
