Repeat¶
Description¶

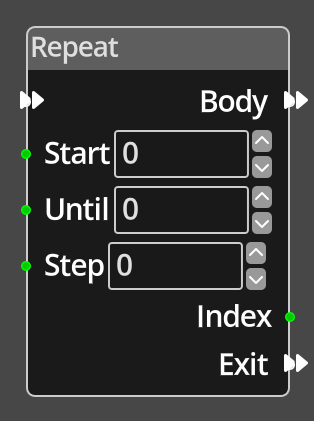

The Repeat Node will run the node flow that is connected to its Body output port
repeatedly while an index is between the Start and Until values provided, altering
the index value each time around the loop by the Step value.
The index is first set to the Start value, and then it is compared to the Until value, if the Step is positive and the index is greater than or equal to the Until value, the loop exits, similarly, if Step is negative and the index is less than or equal to the Until value, the loop exits. That is, the loop runs while the index is before the Until value, it is "exclusive".
During the looping, the current value of the index can be accessed by nodes in the Body using the Index port. Before execution, the index port is undefined, after execution it will contain the last value of the index before exiting the loop.
When the loop is complete, the logic graph will continue with the flow connected to the Exit port.
Ports¶
- Flow In
- In order for this node to perform its operation, it must be connected into an active flow using this input port. The flow will ultimately originate at a Trigger node but can come from the Flow Out port of any other flow node.
- Body
- The nodes that are to be repeatedly executed during the loop. Execution will continue while there is a node connected to the Flow Out of the last node executed, the body ends when there is no connection to the Flow Out, at which point the index is updated and the node will check if it is to run the loop again or exit.
- Start
- An integer port providing the start value of the index, this will be the value of the index during the first run of the Body, it is "inclusive".
- Until
- An integer port providing the value to check the index against for exiting the loop. The loop is exited before the index reaches this value.
- Step
- An integer port providing the value to add to the index each iteration through the loop. This value can be positive or negative, allowing loops where the index increases or decreases with each iteration.
- Index
- An integer output port that provides the current value of the index in the loop, typically used by nodes within the Body flow.
- Exit
- A node connected to the Flow Out port will be executed in sequence following the completion of this node's operation.
Parameters¶
- Start
- An integer input to specify a fixed value for the start of the loop index.
- Until
- An integer input to specify a fixed value for the exit point of the loop.
- Step
- An integer input to specify a fixed value to be added to the index each iteration through the loop.
