Set Instrument¶
Description¶

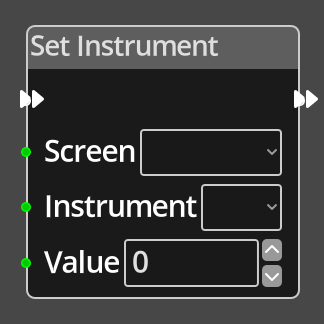

The Set Instrument Node sets the value of an instrument on a screen. The
screen is chosen from a fixed list of screens, the instrument is referenced
by an index into the list of instruments on that screen.
Ports¶
- Flow In
- In order for this node to perform its operation, it must be connected into an active flow using this input port. The flow will ultimately originate at a Trigger node but can come from the Flow Out port of any other flow node.
- Flow Out
- A node connected to the Flow Out port will be executed in sequence following the completion of this node's operation.
- Instrument
- An integer input port used to provide the index of the instrument on the screen.
- Value
- An integer input port used to provide the value to apply to the instrument.
Parameters¶
- Instrument
- A constant integer value for the instrument index, used when the Instrument port is not connected.
- Value
- A constant integer value for the value, used when the Value port is not connected.
