Sub Graph

Description

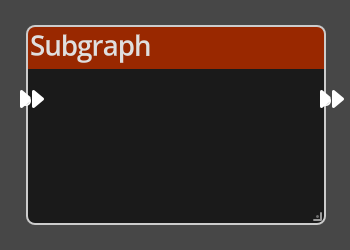

Sub Graph Node The Subgraph Node is a means to "call" a subgraph flow defined in the Shared Logic editor. The input and output ports on the Sub Graph Node will depend on the contents of the Subgraph it is calling.

See Shared Logic for more information regarding the use of Subgraphs.


Ports

Flow In
In order for this node to perform its operation, it must be connected into an active flow using this input port. The flow will ultimately originate at a Trigger node but can come from the Flow Out port of any other flow node.
Flow Out
A node connected to the Flow Out port will be executed in sequence following the completion of this node's operation.
