Transport Object

Description

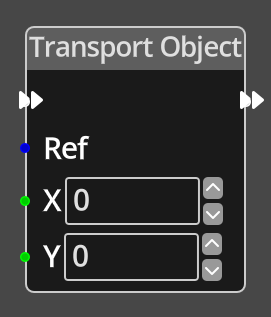

Transport Object Node The Transport Object Node takes input values X and Y that specify a position to transport the specified object to.

Transporting an object differs to the function of the Move Object node in that it performs no intersection testing or collision detection, it simply moves it directly to the chosen position, as such, it is very fast and should be preferred for moving objects when intersection and collision are not important.


Ports

Flow In
In order for this node to perform its operation, it must be connected into an active flow using this input port. The flow will ultimately originate at a Trigger node but can come from the Flow Out port of any other flow node.
Flow Out
A node connected to the Flow Out port will be executed in sequence following the completion of this node's operation.
Ref
An object reference port that provides a reference to the object to transport. If this is not connected, and the logic is on an object, the current object will be used.
X
A constant integer value for the X coordinate, used when the X port is not connected.
Y
A constant integer value for the Y coordinate, used when the Y port is not connected.

Parameters

X
A constant integer value for the X coordinate, used when the X port is not connected.
Y
A constant integer value for the Y coordinate, used when the Y port is not connected.
