Wrap

Description

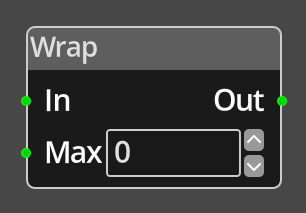

Wrap Node The Wrap Node takes an integer value on the In port, if the value is less than 0, it will negate the value and subtract that from the Max value minus 1, and repeat until it is greater than or equal to 0.

If the input value is greater than or equal to the Max value, it will subtract the Max value, and repeat until it is less than the Max value.


Ports

In
An integer input port used to provide the input value for testing. This must be connected for the node to operate correctly.
Out
An integer output port, the result of the comparison detailed in the description is output on this port.
Max
An integer input port, using this allows you to specify the maximum value from elsewhere in the logic graph, such as via an Number node.

Parameters

Max
A constant integer value for the maximum, used when the Max port is not connected.
