Z80 Out

Description

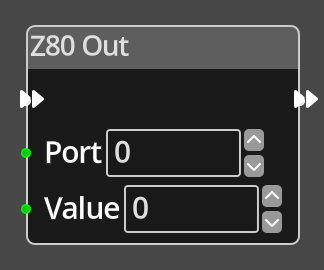

Z80 Out Node The Z80 Out Node is a very special purpose node that allows you to perform an output operation on the Z80 in the Spectrum. It should be used with great care, as incorrect use can crash the machine.

An example use is to change the border colour, setting the port to 254, and the value to a colour value between 0 and 7 will change the border colour.


Ports

Flow In
In order for this node to perform its operation, it must be connected into an active flow using this input port. The flow will ultimately originate at a Trigger node but can come from the Flow Out port of any other flow node.
Flow Out
A node connected to the Flow Out port will be executed in sequence following the completion of this node's operation.
Port
An integer input port used to provide the port number to output the value to.
Value
An integer input port used to provide the value to output to the given port.

Parameters

Port
A constant integer value for the port number, used when the Port port is not connected.
Value
A constant integer value for the value to output, used when the Value port is not connected.
