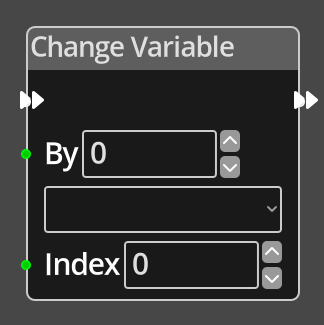

Change Variable

In order for this node to perform its operation, it must be connected into an active flow using this input port. The flow will ultimately originate at a Trigger node but can come from the Flow Out port of any other flow node.

A node connected to the Flow Out port will be executed in sequence following the completion of this node’s operation.

An integer input port used to provide the amount that the variable will be changed by, this can be positive or negative.

An integer value for choosing which element in an Array variable to change. If the variable being accessed is not an Array variable, this parameter is ignored.

A constant integer amount that the variable will be changed by, used when the By port is not connected.

A dropdown listing the defined variables associated with the current logic graph.

A constant integer for the Array index if the Index port is not connected.
