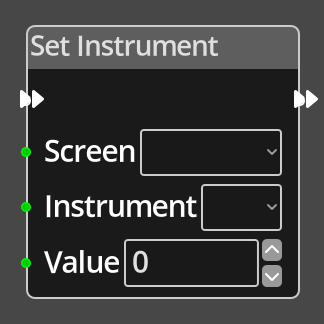

Set Instrument
The Set Instrument Node sets the value of an instrument on a screen. The screen is chosen from a fixed list of screens, the instrument is referenced by an index into the list of instruments on that screen.
Ports
- Flow In
-
In order for this node to perform its operation, it must be connected into an active flow using this input port. The flow will ultimately originate at a Trigger node but can come from the Flow Out port of any other flow node.
- Flow Out
-
A node connected to the Flow Out port will be executed in sequence following the completion of this node’s operation.
- Instrument
-
An integer input port used to provide the index of the instrument on the screen.
- Value
-
An integer input port used to provide the value to apply to the instrument.
